| Temperature Sensors |
|
|
|
|
 |
|
MT2 / MT4 Hand-Held Infrared Pyrometers
|
|
MiniTemp MT2 and MT4 provide great ways
to solve common temperature measurement problems, and are small
enough to fit in your pocket! The popular MiniTemp MT4 also includes
single dot laser sighting to assist with aiming. ST2 range it 0
to 525F (-18 to 270C), ST4 range is 0 to 750F (-18 to 400C).
|
| |
|
|
|
|
 |
|
MT6 Hand-Held Infrared Pyrometers |
|
MiniTemp MT6 unit features the popular single
dot laser sighting system and the large temperature display provides
current and maximum readings. -20 to 932F (-30 to 500C)
|
| |
|
|
|
|
 |
|
ST20 Hand-Held Infrared Pyrometers |
|
The ST PRO Series offers a broad temperature
range and improved optics for measuring temperatures from a greater
distance or measuring smaller objects from the same distance. Standard
features also include a rugged rubber over molding, a durable plastic
storage case, and Extra Bright laser sighting system. ST20XB range
is -25 to 999F (-32 to 535C).
|
| |
|
|
|
|
 |
|
ST60 / ST80 Hand-Held Infrared Pyrometers
|
|
The ST PRO Series offers a broad temperature
range and improved optics for measuring temperatures from a greater
distance or measuring smaller objects from the same distance. Standard
features also include a rugged rubber over molding, a durable plastic
storage case, and Extra Bright laser sighting system. ST60XB range
is -25 to 1100F (-32 to 600C), the ST80XB range is -25 to 1400F
(-32 to 760C).
|
| |
|
|
|
|
 |
|
CI Fixed Infrared Sensor |
|
The CI measures target temperatures ranging
from 0 to 500°C (32 to 932°F). The onboard electronics are
protected by a rugged IP 65 (NEMA-4) stainless steel housing, allowing
the sensor to function in ambient temperatures to 70°C (160°F)
without cooling. With water cooling, the CI can withstand ambient
temperatures up to 260°C (500°F). Type J, K or 0-5 V output.
|
| |
|
|
|
|
 |
|
MI Fixed Infrared Sensor |
|
MI is a two-piece infrared temperature measurement
system with a miniature sensing head and separate electronics. The
miniature sensing head is small enough to be installed just about
anywhere. Easily adjust the MI signal processing electronics, which
include Emissivity, Peak Hold, Valley Hold, and Averaging functions,
on the 5-digit LCD user interface.
|
| |
|
|
|
|
 |
|
GP Fixed Infrared Sensor |
|
GP Series is a versatile, two-piece temperature
monitoring system that combines a compact monitor and an infrared
sensing head. The heart of the system, the 1/8 DIN GP monitor, provides
advanced infrared processing capabilities including peak and valley
hold and averaging. Available with standard or close focus optics.
|
| |
|
|
|
|
|
Emissivity of Most Common Materials
Emissivity is the measure of an object's
ability to emit infrared energy. Emitted energy indicates the temperature
of the object. Emissivity can have a value from 0 (shiny mirror)
to 1.0 (blackbody). Most organic, painted, or oxidized surfaces
have emissivity values close to 0.95. Some of our portable thermometers
have adjustable emissivity to ensure accuracy when measuring other
materials such as shiny metals. You can choose units with adjustable
or preset to 0.95 emissivity.
If you are using a thermometer with a fixed,
preset emissivity of 0.95, and need to measure a shiny object you
can compensate by covering the surface to be measured with spray
oil, flat black paint or masking tape. Measure the temperature of
the taped or painted surface. That is the true temperature.
Please note, these tables are to be used
as a guide only as emissivity changes with temperature and surface
finish.
Guide
to Emissivity of Non-Metals
Guide to Emissivity
of Metals
|
| Thermocouple
and RTD Sensors |
|
|
| Temperature sensors come in a variety
of shapes and sizes, more than we could ever list on our web site.
Any configuration to meet your application can be manufactured. Thermocouples
and RTD sensors can usually be configured similar in the designs below.
For your convenient we have listed several common sizes and configurations.
Please contact us for your requirement. |
| Thermocouple
Codes Chart |
| Information on types of thermocouples,
their wiring color codes and temperature ratings. |
| |
|
|
|
|
Straight Tip, Spade Terminals, Stainless Steel
Tube. Many sizes available with braided and armor sleeving. |
| |
 |
|
Straight Tip, Plug Terminal, Stainless Steel
Tube. Many sizes available with braided and armor sleeving. |
| |
 |
|
90 deg. Bend, Spade Terminals, Stainless Steel
Tube. Many sizes available with braided and armor sleeving. |
| |
 |
|
Fixed Bayonet Probe, Spade Terminals, Straight
Tube. Many sizes available with braided and armor sleeving. |
| |
|
|
Bayonet Probe, Plug Terminal, Angled Tube. Many
sizes available with braided and armor sleeving. |
| |
 |
|
Adjustable Bayonet Probe, Plug Terminal,
Straight Tube. Many sizes available with braided and armor sleeving. |
| |
 |
|
Nozzle Probe, Spade Terminals. Many sizes available
with braided and armor sleeving. |
| |
 |
|
Extruded or Melt Bolt Probe, Plug Terminal.
Many sizes available with braided and armor sleeving. |
| |
 |
|
Ringlet Fitting, Spade Terminals. Many sizes
available with braided and armor sleeving. |
| |
 |
|
Brass or stainless steel shim stock thermocouple
with stainless steel overbraid leads. Many sizes available with braided
and armor sleeving. |
| |
 |
|
Refractory insulated thermocouple with flexible
leads and spade terminals. Many sizes available with braided and armor
sleeving. |
| |
 |
|
Refractory insulated thermocouple with terminal
connector. Many sizes available with braided and armor sleeving. |
| |
 |
|
Clamp style with overbraid.Many sizes available
with braided and armor sleeving. |
| |
 |
|
Thermocouple extension cable with Stainless
Steel flexible armor and plugs on both ends. Any length available
with or without plugs. |
| |
 |
|

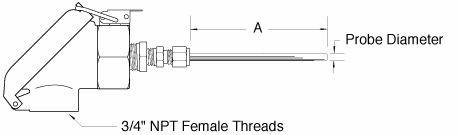

Refractory insulated thermocouple with cast
aluminum head. Many configurations available including explosion resistant
terminal housings. |
| |
 |
|
Stainless Steel Thermowells in different lengths
and thread sizes. |
| |
 |
|
|
|
Sensor heads for thermocouple and RTD assembles.
Housing made of aluminum, cast iron and plastic for environments including
general purpose, weather tight and explosion resistance. |
| |
|
|
 |
|
Brass Compression Fitting |
|
Adjustable Adapter (Brass compression fitting).
Used for installing thermocouples, RTDs, or other sensors with metal
tubular sheaths in pipes or tanks providing a torque-free, leak-proof
seal. !/8" NPT. |
| |
 |
|
Bayonet Adapter |
|
Bayonet Adapter for any of the bayonet
probes with standard locknut. Many length and thread configurations.
|
| |
 |
|
Standard Connectors |
|
Made to standard industrial specifications
for thermocouples and RTD's, thus allowing matting with other regular
size plugs and jacks. Color coded based on sensor type.
|
| |
 |
|
Mini Connectors |
|
Made to the standard industrial specifications
in a mini size for thermocouples, thus allowing matting with other
mini size plugs and jacks. Color coded based on sensor type.
|
| |
 |
|
Panel-Mount Connectors |
|
For thermocouple and RTD's individual mounting
into a 1 1/8" diameter hole (standard 3/4" conduit knockout).
Installed entirely from the front of the panel. Cases are made of
nylon (rated at 400°F). Color coded based on sensor type. |
| |
 |
|
Thermocouple Sensor Grade Wire |
|
THERMOCOUPLE WIRE- STANDARD GRADE meets or exceeds
ISA (Instrument Society of America) specifications for accuracy. A
variety of insulation is offered to meet your requirements. If the
wire is to be used to run more than 20 or 30 feet, it is usually preferable
to use the larger, more heavily insulated extension grade wire for
distance runs. Available as a shielded wire and with stainless steel
overbraid. |
| |
|
|
Thermocouple Extension Grade Wire |
|
THERMOCOUPLE WIRE - EXTENSION GRADE is used
mostly for connecting probes to instrumentation. To retard electrical
losses along its length, it is generally larger wire and more heavily
insulated than the standard grade wire. Available as a shielded wire
and with stainless steel overbraid. Different gauges available. |
